DIABLO 1/2 in. x 1 in. Carbide Top-Bearing Flush Trim Router Bit

Original price was: $30.97.Current price is: $22.30.

Use in hand-held or table-mounted routers
Use on CNC, hand-held, and table-mounted portable routers
TiCo Hi-Density Carbide for flawless finishes and longer life

fast shipping

Secure Shopping with Safe Payments

Sustainable materials, for a better tomorrow.

Your happiness, our mission.

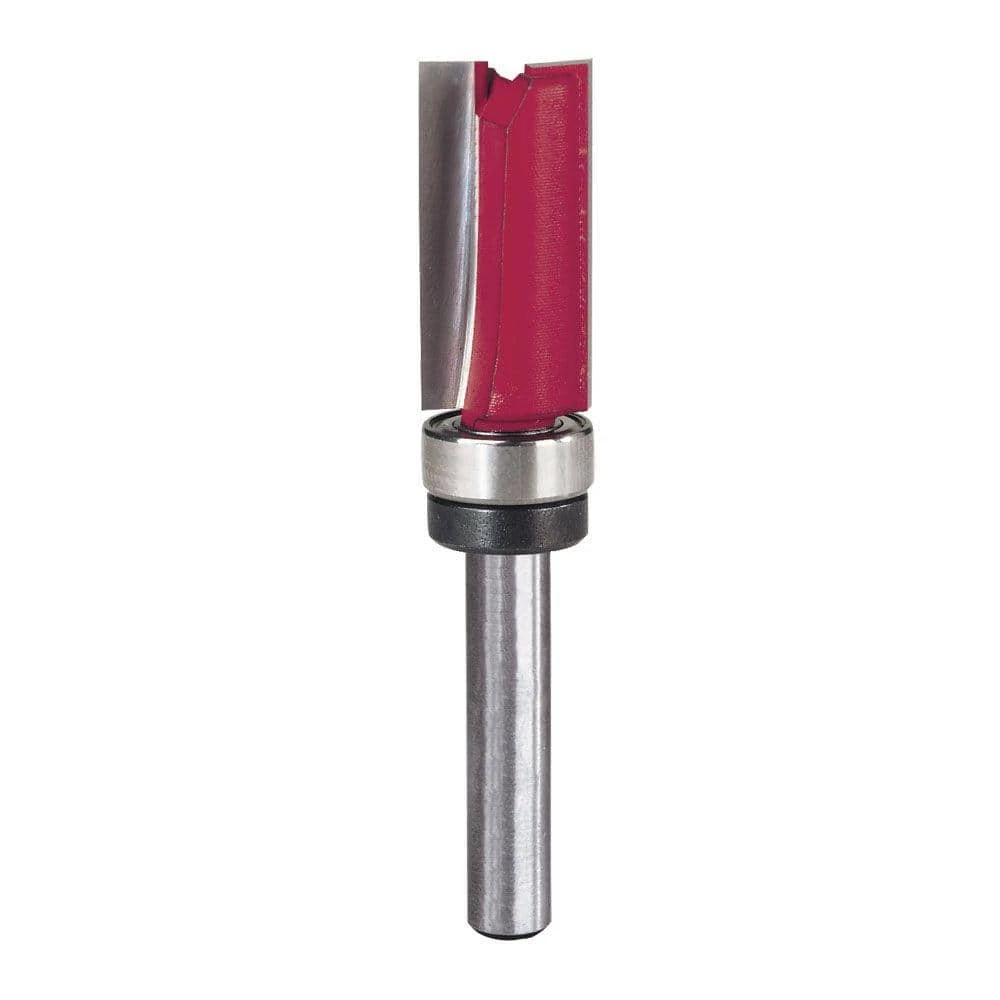

The Diablo 1/2 in. x 1 in. Carbide Top-Bearing Flush Trim Router Bit has an upper bearing that travels along the edge of a template to guide your tool down an identical cutting path. Ideal for making copies of a master workpiece, it provides a controlled, splinter-free trim on all types of wood and laminates. The high-density carbide and titanium composition stands up to repeated use and is designed to produce clean, safe cuts every time.

Delivers a clean, precise cut ideal for laminates and template work
High-density carbide body with titanium construction offers a long cutting life
Tri-metal brazing provides an impact-resistant bond between the carbide and bit
Kickback-reducing design allows steady operation
Requires a minimum chuck size of 1/4 in.

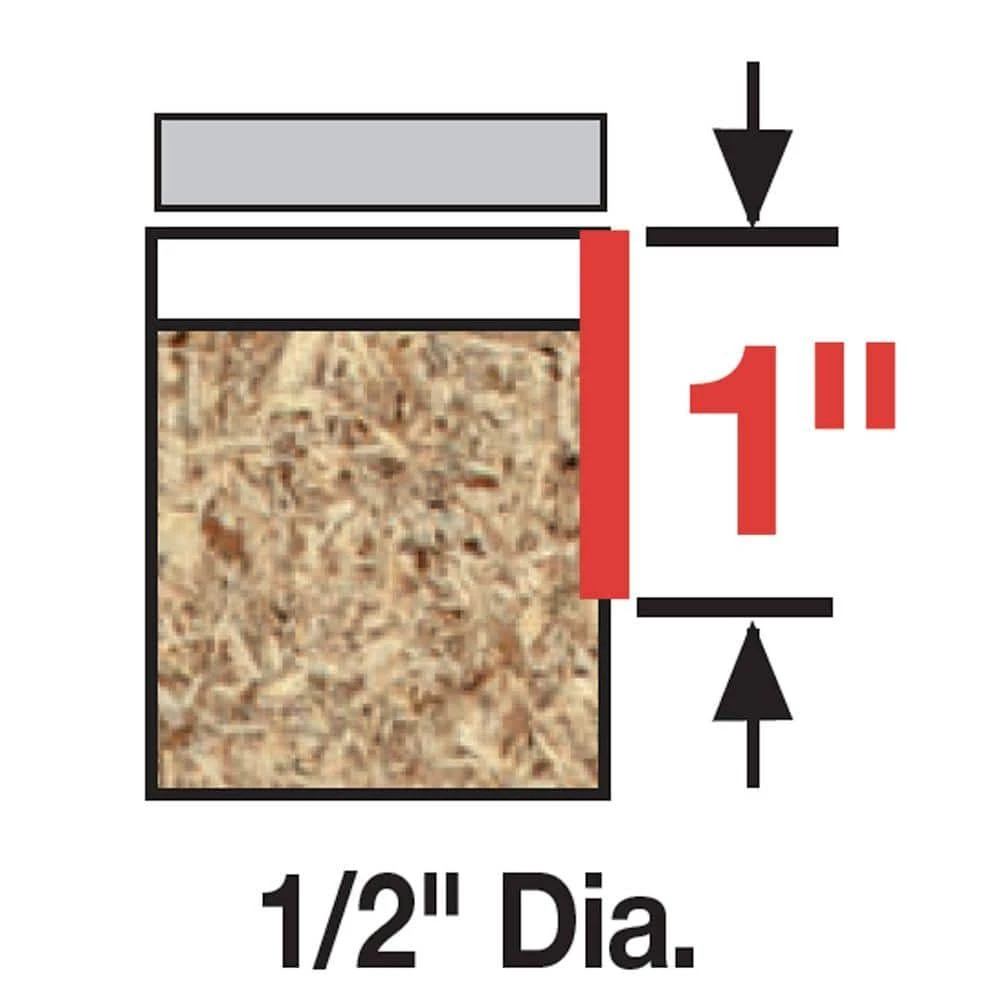

1/2 in. bit diameter with 1 in. cutting depth
Great for cutting wood, plywood, melamines and MDF
Red router bits are a registered trademark of Freud America, Inc.
Overall diameter = 1/2 in.
Bearing diameter = 1/2 in.
Carbide height = 1 in.
Shank diameter = 1/4 in.
Overall length = 2-1/2 in.

Individual/Set	Individual
Number of Flutes	2
Number of Pieces	1
Returnable	90-Day
Router/planer type	Trim
Self-Feeding	No
Tools Product Type	Power Tool
Cut Radius	1/2 in
Product Height (in.)	5.5
Product Length (in.)	2.625
Product Width (in.)	2 in
Shank Diameter (inch)	1/4 inch
